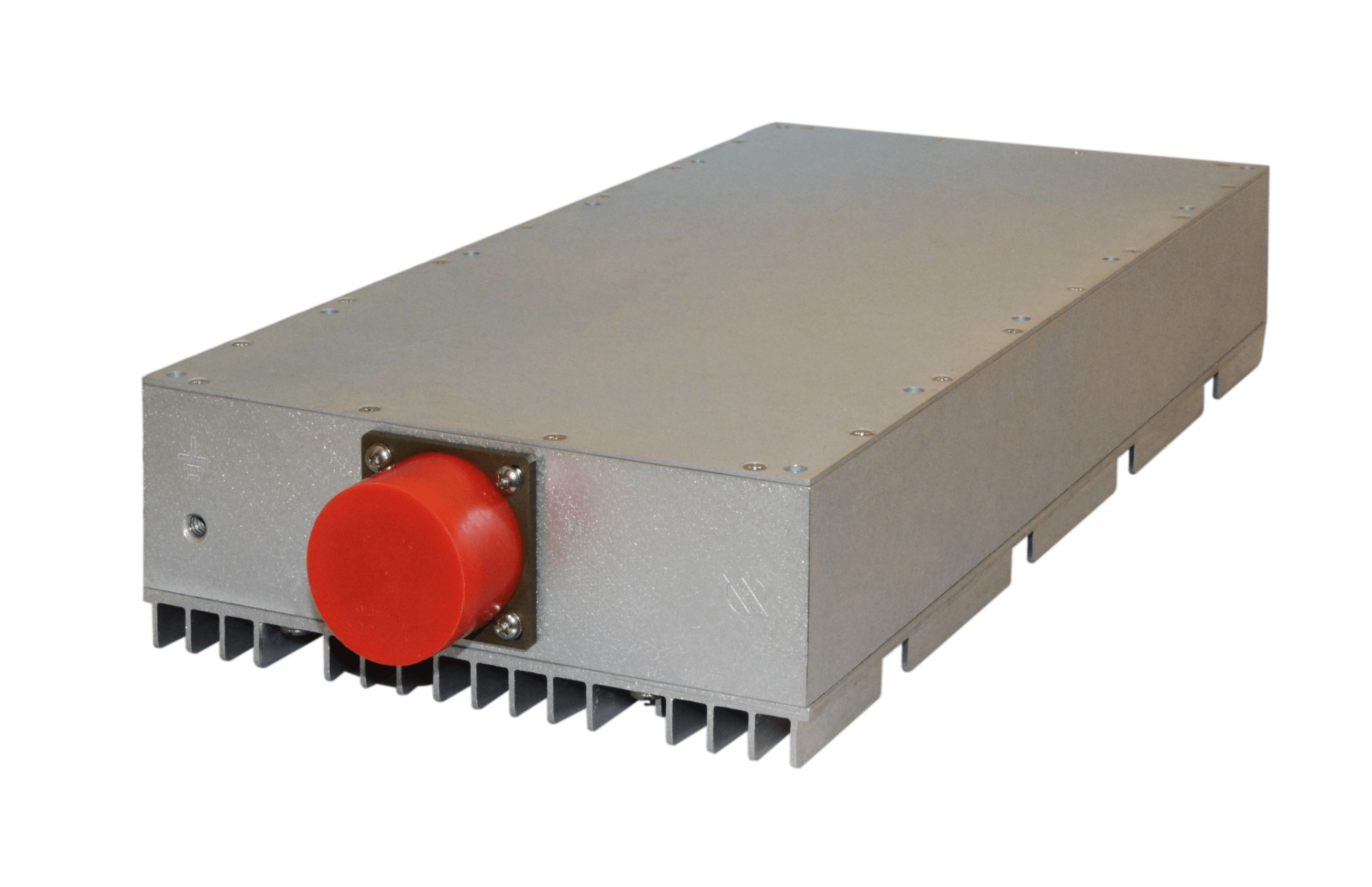

SW2511008-xx-01-DCS_1722_clipped_rev_1_Edit-min
Product # SW2511008-15-01

Convection-Cooled DC-DC 1020 W Power Supply | 12-36 V Input

  • 12-36 VDC

    Input Voltage

  • 15 VDC

    Output Voltage

  • 1020 W

    Output Power

  • 1

    # of Outputs

Request Product Info Download Datasheet

Product Description

This DC-DC power supply is designed to perform and protect in harsh, military environments. It is environmentally sealed to meet IP67 when mated with connectors and cable assemblies. It is compact in size, weighing approximately 13 lb, and is convection cooled. It is designed to meet the input power requirements of MIL-STD-1275E. This power supply is built for performance and tested for reliability. Custom output voltages are available—submit a product request and let us know what your specifications are.

Environment MIL-STD-810*

Temperature

Temperature

-40°C to +71°C operating, -40°C to +85°C non-operating

Humidity

Humidity

Up to 100%, condensing

Vibration

Vibration

MIL-STD-202G*, Method 201

Shock

Shock

MIL-STD-202G*, Method 213, Test Condition J

EMI

EMI

MIL-STD-461G*, CE102

*Designed to meet

Features

  • Single output of 15 V, up to 1020 W
  • 12 to 36 V input
  • Designed to meet MIL-STD-1275E
  • Environmentally sealed to IP67
  • Convection cooled
  • Efficiency up to 96%
  • Ripple ≤240 mVp-p
  • Regulation 5%, line and load
  • Non-isolated
Product # Input Voltage(VAC) Output Voltage (VDC) Output Power(W) # of Outputs
SW2511008-12 12-36 12 960 1
SW2511008-12-01 12-36 12 960 1
SW2511008-15 12-36 15 1200 1
SW2511008-15-01 12-36 15 1020 1
SW2511008-16 12-36 16 1280 1
SW2511008-16-01 12-36 16 1020 1
SW2511008-18 12-36 18 1440 1
SW2511008-18-01 12-36 18 1430 1
SW2511008-22 12-36 22 1760 1
SW2511008-22-01 12-36 22 1680 1
SW2511008-24 12-36 24 1920 1
SW2511008-24-01 12-36 24 2000 1
SW2511008-26 12-36 26 2000 1
SW2511008-26-01 12-36 26 2000 1
SW2511008-28 12-36 28 2000 1
SW2511008-28-01 12-36 28 2000 1
SW2511008-32 12-36 32 2000 1
SW2511008-32-01 12-36 32 2000 1
  • MIL-DTL-5541
  • MIL-STD-202
  • MIL-STD-461
  • MIL-STD-810
  • MIL-STD-1275
